High Pressure & Temperature Capability
Engineered for demanding industrial duties where conventional plate heat exchangers may not be suitable.
PLATE & SHELL HEAT EXCHANGER SPECIALIST
Plate & Shell Heat Exchanger Manufacturer
Fully welded Plate & Shell Heat Exchangers engineered for high-pressure, high-temperature, condensing, evaporating and demanding industrial process applications.
Fully welded plate pack · Project-specific shell design

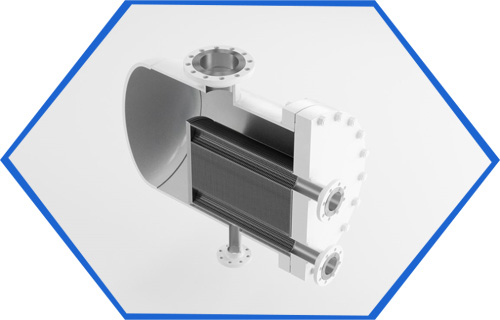

01Circular plate pack

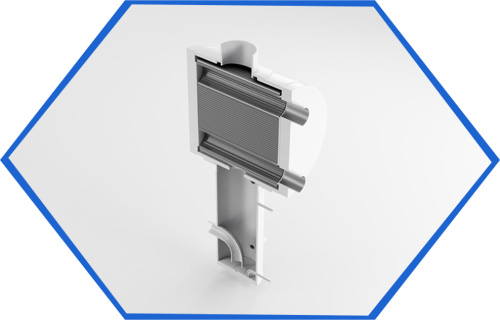

02Fully welded channels

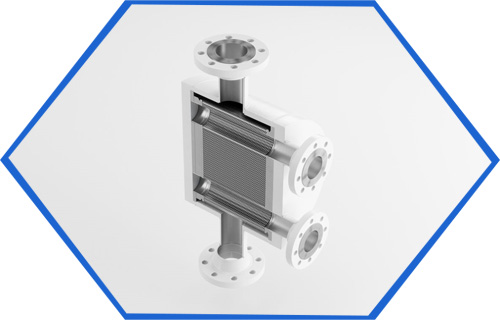

03Pressure shell construction
04Project-specific selection
THE PRODUCT
Plate & Shell Heat Exchangers for Demanding Process Duties
JINCHEN combines a fully welded circular plate pack with a pressure shell. Gasket-free heat-transfer channels, compact construction and project-specific configuration support single-phase and two-phase duties. Pressure, temperature and material suitability are confirmed during engineering selection.
- Fully welded heat-transfer channels
- Fully welded and openable configurations
- Shell and nozzles selected for your installation
WHY PLATE & SHELL
Why Plate & Shell?
Select the construction around your fluids, thermal duty, design conditions and maintenance requirements.
Fully Welded, Gasket-Free Plate Pack
Designed for reliable operation under demanding pressure, temperature and thermal cycling conditions.
Compact, High Surface-Area Design
High heat-transfer surface density enables compact construction and low fluid hold-up.
Resistance to Thermal Shock
Welded plate-pack construction is suitable for applications involving significant temperature changes and thermal cycling.
Small Footprint
Compact construction can reduce installation space compared with conventional exchanger designs.
APPLICATION ENGINEERING
Heating, Cooling and Phase Change
Liquid Heating & Cooling
Water, oils, solvents and compatible process liquids.
Gas Heating & Cooling
Volumetric flow, distribution and pressure-drop limits.
Condensation
Steam, refrigerants and process vapours.
Evaporation
Liquid feed, circulation and stable boiling.
Reboiling
Process vapour generation and kettle-type duty.
Heat Recovery
Recover heat between process streams.
Engineering for Your Industry
Oil & Gas
Evaluate crude conditioning, solvent regeneration and gas cooling around the actual fluid behaviour, thermal duty and available pressure drop.
Refrigeration
Coordinate condensation, evaporation and cascade duty with refrigerant distribution, oil management and system controls.
Marine & Offshore
Combine heat-transfer selection with seawater compatibility, vapour handling and the installation requirements of the vessel or offshore facility.
Engineering Behind the Welded Plate Pack
Plate geometry, flow distribution and thermal design work together with two-phase behaviour, fouling control and mechanical integrity. Explore the engineering decisions behind a custom Plate & Shell Heat Exchanger.
Manufacturing & Quality
JINCHEN manufactures Plate & Shell Heat Exchangers from circular plate forming and plate-pack welding to shell fabrication, assembly and inspection.
Material identification, dimensional checks and traceability connect the equipment to its project documentation. Agree the required non-destructive examination (NDT), pressure testing and inspection records with the order specification.
PROJECT EXPERIENCE
Equipment in real applications.
Explore three projects documented by JINCHEN, from water cooling to marine condensation and rich-oil heating.
01 / Cases

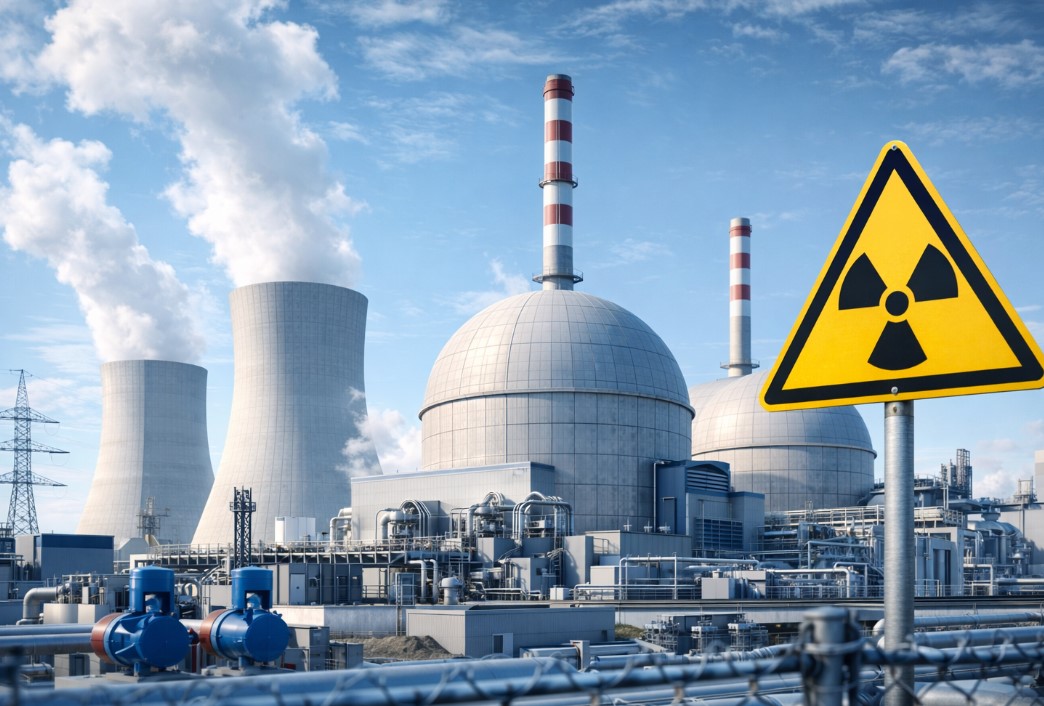

Nuclear power water cooling
A fully welded plate & shell unit for high-temperature, high-pressure water cooling.
View project
02 / Cases

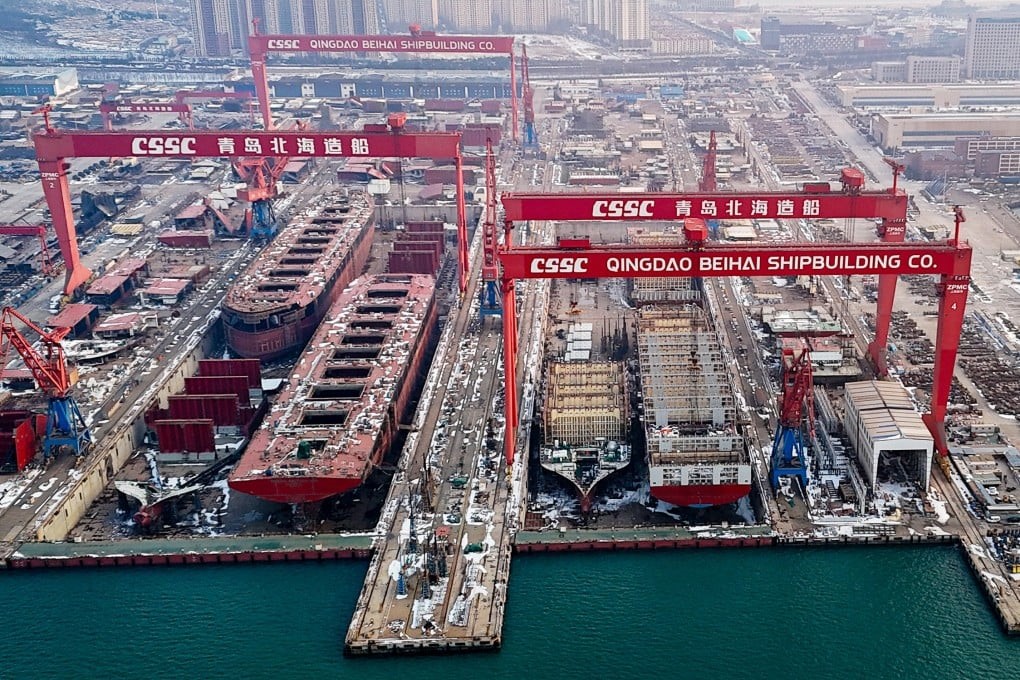

Titanium seawater condenser
Titanium construction for seawater and mixed-gas condensation.
View project
03 / Cases

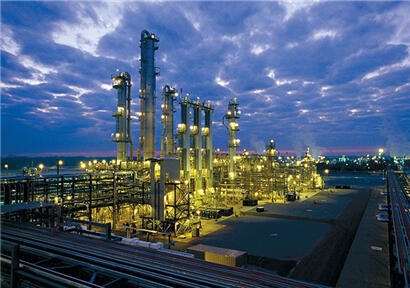

Rich-oil heating
Saturated-steam heating of rich oil in a coal chemical process.
View projectNeed a Plate & Shell Heat Exchanger Selection?
Send both fluids, flow rates, inlet and required outlet temperatures, operating and design pressures and temperatures, allowable pressure drops, material requirements and fouling information.
Send Your Process Data
